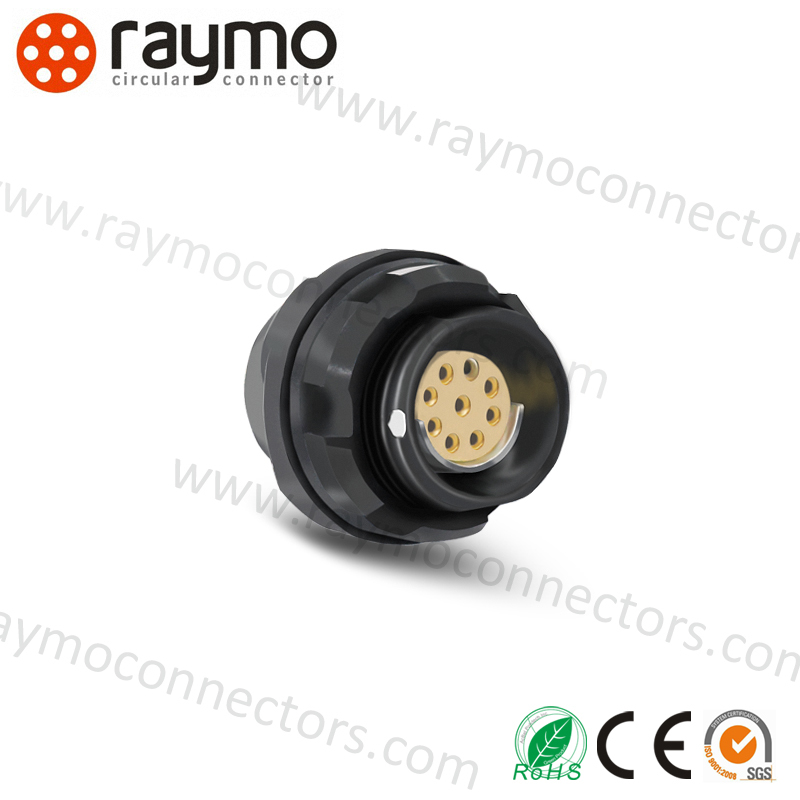

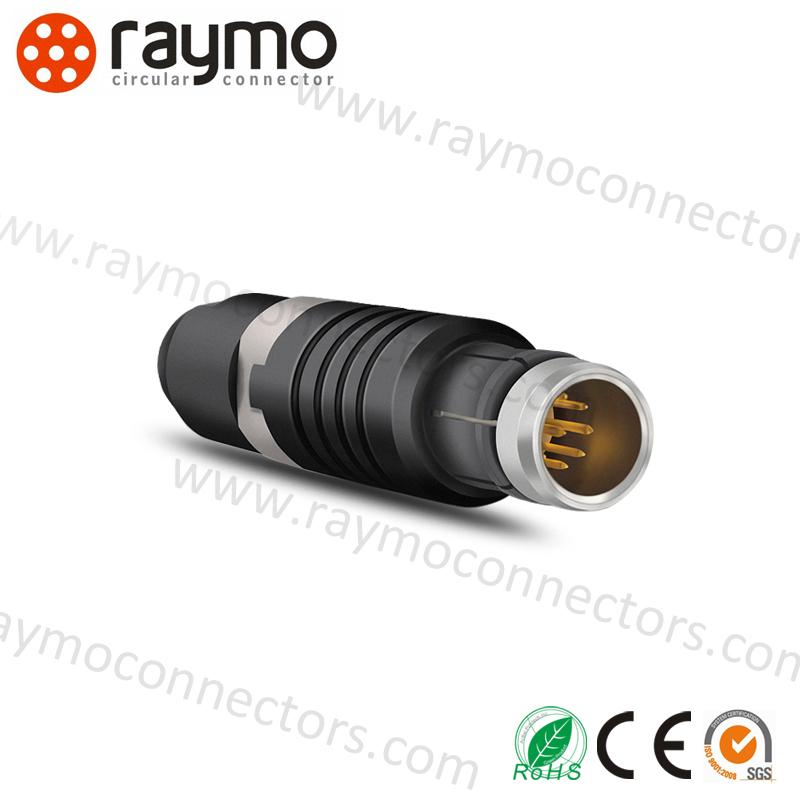

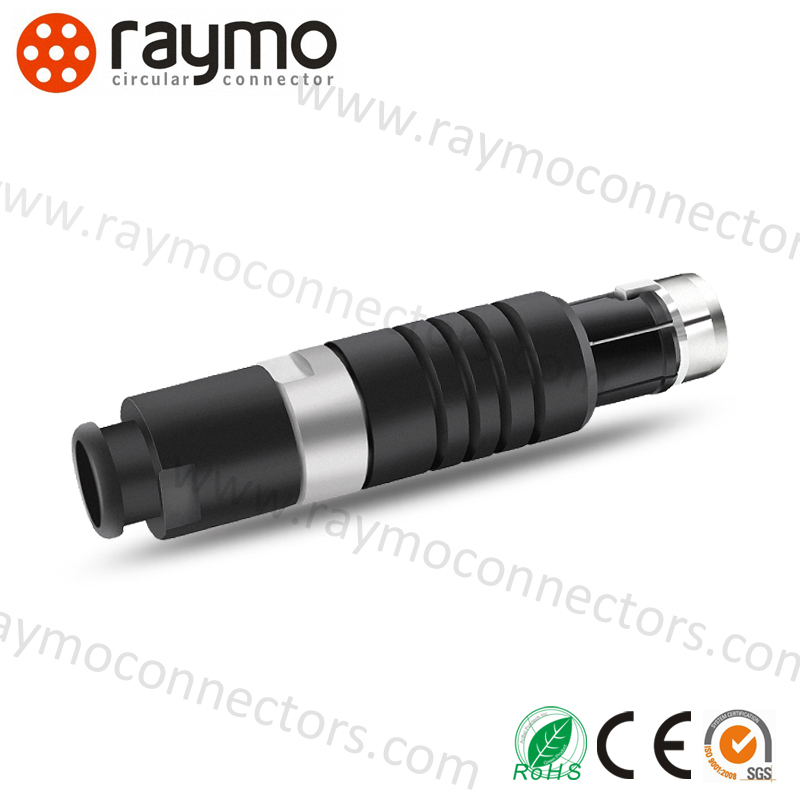

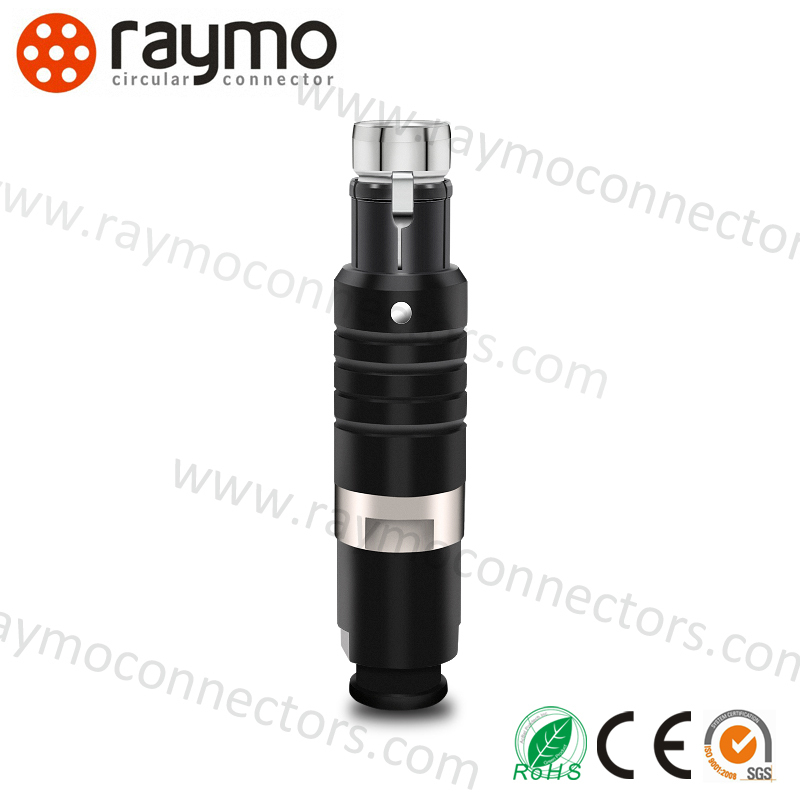

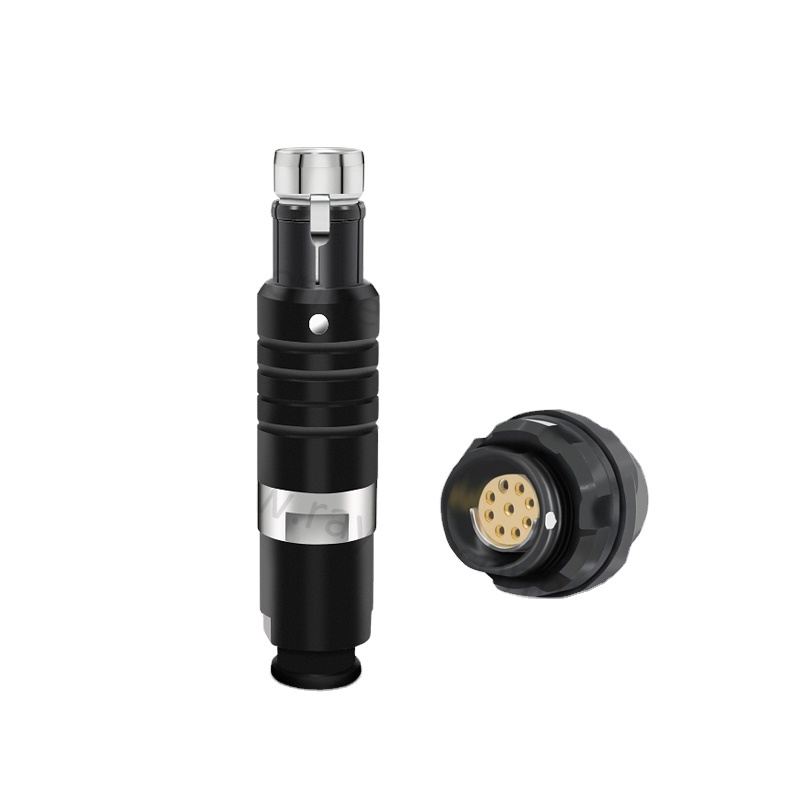

1031 Series Circular Connector IP68
Product Specifications
| Attribute |
Value |
| Shape |
ROUND |
| Rated Current |
3 |
| Contact Material |
Brass |
| IP Level |
IP68 |
| Type |
Adapter |
| Application |
Audio & Video |
| Gender |
Male and female |
| Housing Material |
Brass, black/natural chrome-plated brass |
| Shell Style/Model |
Push pull connector |
| Certificate |
ISO9001/CE/ROHS/REACH |
| Contact No. |
10,12,15,19 pins |
| Insulator |
PPS |
| Contact Type |
Solder type |
| Cable Assembled |
YES |
| Max. Mating |
5000 |
| MOQ |
No MOQ limit |
Technical Characteristics
| Characteristic |
Value |
| Endurance (shell) |
5000 mating cycles |
| Humidity |
Up to 95% at 60°C/140°F |
| Temperature Range |
-65°C to +200°C |
| Resistance to Vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [6 ms] |
| Salt Spray Corrosion Test |
>96 hr |
| Climatical Category |
50/175/21 |
| Shielding (min) |
>75 dB [at 10 MHz], >40 dB [at 1 GHz] |
| IP Rating |
IP68 |
| Certifications |
ISO9001/CE/ROSH/SGS |
Key Features
- Security of the push-pull self-latching system
- Multipole types with 2 to 19 pins contacts
- Solder or PCB contacts (straight or elbow)
- 360° screening for full EMC shielding
- High-density installation for space-saving
- Multiple key options to avoid cross mating of similar connectors
- Made of bronze beryllium with gold-plated surface
- Brass outer shells with chrome nickel-plated surface
Applications
Automotive, Audio-Video, Aviation, Communications, Industrial Control, Information Systems, Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment, Module Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Our Company
As a manufacturer located in Shenzhen, we specialize in manufacturing connectors and cable assemblies, serving more than 150 countries since 2010. Raymo Connectors is committed to working closely with customers to equip their applications with the most appropriate connector and cable systems. Our product range comprises over 3,000 standard items, and we are always prepared to develop customized solutions for specific requests.
Our Service
- Main products: connectors and cable assembly
- High quality, competitive price, fast delivery (5-7 working days)
- Main markets: North America, Europe, Asia, North Africa, Oceania
- OEM Manufacturing welcome: Product, Package...
- No MOQ limited
- Free samples available
- 24-hour response time for inquiries
- Order tracking every two days until delivery
Packing & Delivery
Packing Way
- 10 or 20 pcs in a PE bag (cable assembly one piece per bag), then placed into carton
- Every 50 or 100 pcs of connectors in a small box (size: 19cm × 15cm × 10cm)
Shipping Terms
Loading Port: Shenzhen, China
- 1-10pcs: 3-5 working days
- 11-100pcs: 5-7 working days
- 101-500pcs: 7-10 working days
Goods can be shipped by air, sea, or other methods. Delivery time depends on order quantity and exact items.
Frequently Asked Questions
1. Are you a professional manufacturer?
Yes, we specialize in producing circular push pull connectors and cable assemblies since 2010. Our factory is SGS audited and has been working on Alibaba for more than 7 years.
2. What is the MOQ?
No MOQ limit - small orders are accepted based on customer needs.
3. Are free samples available?
Yes, free samples are available. Please contact us for details.
4. What is the delivery time?
Samples: 1-2 working days; Mass production: 5-10 working days.
5. What are your payment terms?
100% T/T deposit when customer places order.
6. Does your product have any warranty?
Yes, all connectors can work normally after 5000 mating cycles. We test all products before shipping. Warranty does not cover damage due to misuse, unauthorized modifications, or repairs.
Please email us with exact model requirements for best pricing and detailed specifications. We provide cost-effective alternatives to original brands with long lead times!
