Fischers 15 Pin IP 68 Waterproof Circular Connector DBPU 1031 A015130 for Broadcast
Product Specifications
| Attribute |
Value |
| Shape |
ROUND |
| Rated Current |
4A |
| Contact Material |
Brass |
| IP level |
IP68 |
| Type |
Adapter |
| Application |
Audio & Video |
| Gender |
Female |
| Housing Material |
Brass, Brass with chrome plated |
| Shell model |
DBPU panel receptacle |
| Color |
Natural / Black chrome |
| Shell size |
0F/102, 1F/103, AF/1031, 2F/104 |
| Contact no. |
2, 3, 4, 5, 6, 7,...,19 pins |
| Connector type |
PCB contacts |
| Cable assembled or not |
Yes |
| Certificate |
ISO9001/CE/ROHS/SGS |
| IP Ranking |
IP68 |
Product Description
Parts No.: RM-DBPU-AF1C-315-KS

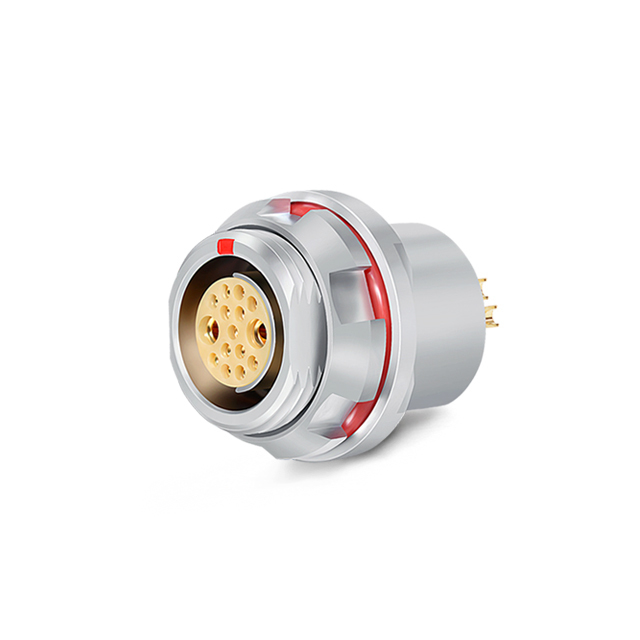

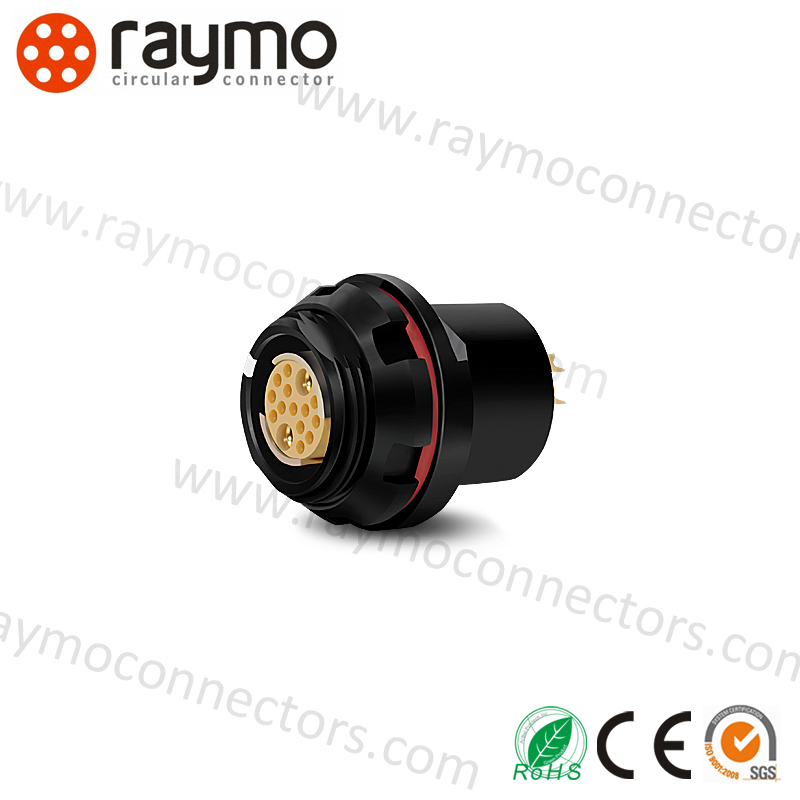

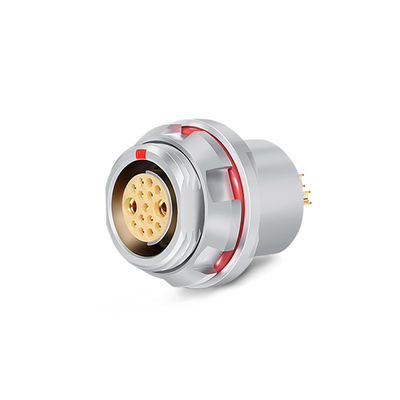

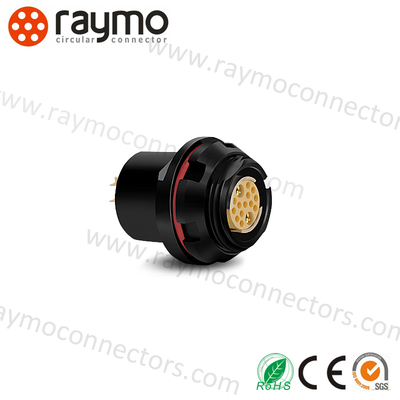

DBPU 1031 A015 -130+ Fischers Compatible 15 Pin IP 68 waterproof circular Connector
Description: DBPU circular connectors, 15 pins male solder contacts, natural chrome plated brass
100% compatible with Fischer circular connectors with high quality
Multiple contacts and shell side are available
Compatible Connector Series
- LEMOS Connector B series, waterproof K series, half-moon S series, REDEL P series
- FISCHERS Connector 102 103 1031 104 series
- HIROSES Connector HR10A series
- Binders Connector M16 682 420 series
- Ultimate waterproof Connector RM-U series
- Deepsea waterproof Connector RM-V series
Custom cable assembly can be designed according to customer needs. OEM accepted.
Alternative RM-B Series (IP50)
Size: 00B, 0B, 1B, 2B, 3B
Contact No.: 2-32 pins
Ultimate Waterproof RM-U Series
Size: 0V/1V
Contact No.: 2-10 pins
Custom Cable Assembly
OEM services available for custom cable solutions
About Our Company
RAYMO is a manufacturer specializing in:
- Metal and plastic circular connectors and cable assembly
- 100% compatible with original connectors
- Wide range of series including RM-B, RM-K, RM-S, RM-F, RM-E, RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, RM-U, RM-V
- OEM services available
- Certifications: CE, ROHS, ISO:90001-2015, SGS Audited
- Durability: All items work normally after 5000 mating cycles
With professional R&D and excellent craftsmanship, we provide precision connectors and cable harness solutions tailored to customer needs.
Quality and Service
All connectors are compatible with original ones with excellent performance.
Delivery Time: Approximately 5-7 working days for orders under 100 pieces.
Applications
RAYMO's high quality connectors are used in various challenging environments including:
- Automotive
- Audio-video
- Aviation
- Communications
- Industrial Control
- Information Systems
- Medical
- Test and Measurement
- Data Acquisition
- Sensor Systems
Certifications
Packing & Delivery
Packing Method:
- 10 or 20 pieces in a PE bag
- Cable assembly: one piece per bag
- 50 or 100 pieces of connectors in a small box (19cm×15cm×10cm)
Shipping Terms:
Loading Port: Shenzhen, China
- 1-10 pieces: 3-5 working days
- 11-100 pieces: 5-7 working days
- 101-500 pieces: 7-10 working days
Shipping options include air, sea, and other methods. Delivery time varies by order quantity and items.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Paypal are both OK. For large orders, we accept T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q3. What is your terms of delivery?
A: FOB SHENZHEN
Q4. How about your delivery time?
A: Generally 5-7 working days after receiving advance payment. Exact delivery time depends on items and order quantity.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including building molds and fixtures.
Q6. What is your sample policy?
A: We can supply samples if we have ready parts in stock, with customer covering sample and courier costs.
Q7. Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery.
